40-100 Ton Pipe Welding Rollers With Remote Hand Control And Foot Pedal for pipe butt welding/welding rotator
WELDSUCCESS PRODUCTS.pdf
Wind Tower Pipe Welding Rollers Stands Brife Introduction
1. One drive & one idler packaged together.
2. Remote hand control & foot pedal control.
3. Self aligning for different diameter vessels.
4. Stepless adjustable speed of the driven part.
5. Drive rotation speed in digital readout.
6. Top-class electronic components from Schneider.
7. 100% new from original manufacturer
8. CE marking
Pipe Welding Rotators Detail Specification
| Model | HGZ-40 | HGZ-50 | HGZ-60 | HGZ-80 | HGZ-100 |
| Max Capacity | 40 T | 50T | 60 T | 80 T | 100 T |
| Roller Diameter (mm) | 400 | 400 | 450 | 500 | 500 |
| Roller Width (mm) | 120 |
| Working Range (mm) | 600-4200 | 700-4500 | 750-4800 | 850-5000 | 1000-5500 |
| Roller Speed (m/h) | 6-60 |
| Motor Power (kw) | 2*1.5 | 2*2 | 2*2 | 2*2 | 2*2.3 |
| Option : | □ Moving wheels □ Wireless Control □ Remote Control |
Famous brands
1. Taida / Yaskawa inverter
2. Invertek / ABB motor
3. Cable reducer
4. Schneider / Siemens electric control system
5. Digital speed display on the hand control box
Pipe Welding Rollers Applications
1. Support the tank for turning to make the seam welding conveniently.
2. We also have the movable model for several single pipe butt welding.
3. Fit up welding rollers or lift rollers are all available.
4. Working with automatic seam welding manipulator is more convenient.
Installation and after sale service
1. The rollers will be fully installed before package in wooden case, you just need to connect the wire rod.
2. We also supply the installation service at your work shop if needed.
3. Before using, please give the reducer oils according to our work manual.
4. If have any questions during the wire connection , just send us one email.
Others
1. If you want the foot pedal control , please advise me when you send us the inquiry.
2. Movable pipe welding rollers are also available.
3. We suggest you choose the welding column and boom together with the rollers for auto tank welding.
4. ISO / CE certificates supported.

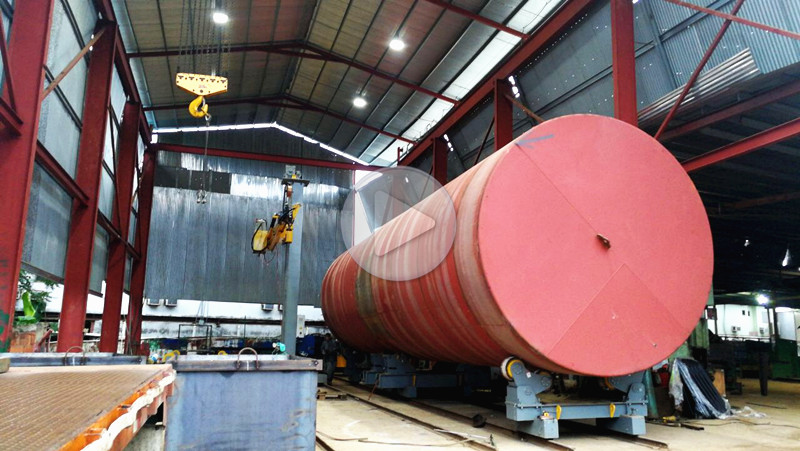

video:
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
Product Tags:
|
|
Vessels 40-100Tons Self Aligning Pipe Welding Rollers,PU Wheels For Wind Tower And Tank Images
|
